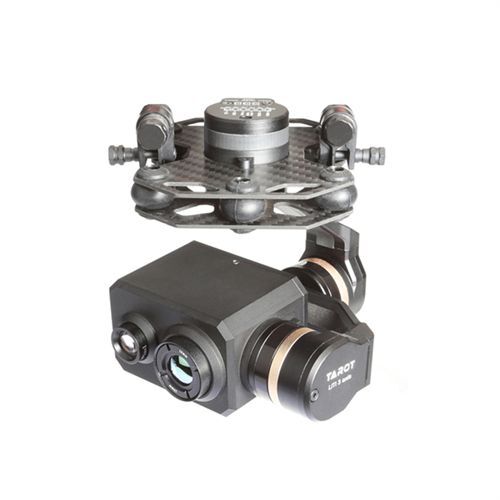

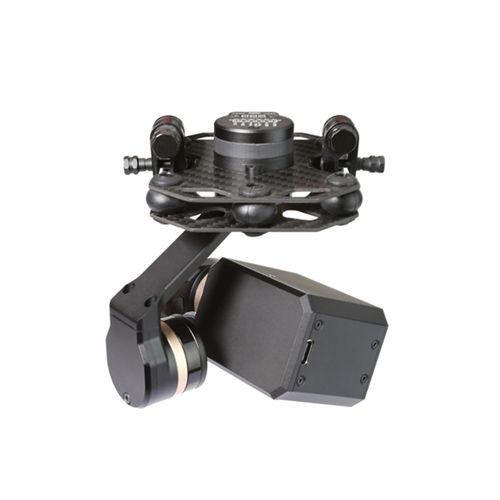

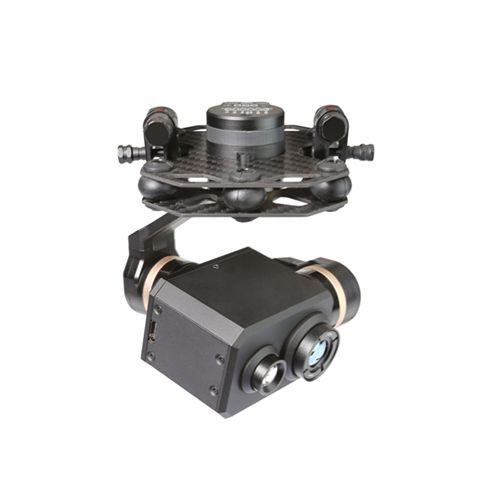

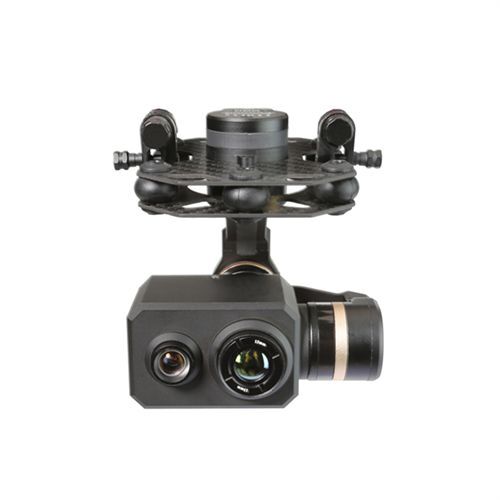

Tarot TL3T21 3-Axis Gimbal Camera 640 Thermal Imaging Camera & Visible Light Camera

Product Description:
·Tarot factory built-in 640 thermal imaging movement/visible light movement of the dual-sensor three-axis gimbal
·Is our company for the power inspection,fire fighting and many other industry needs and to create a professional level three-axis thermal imaging gimbal
·The use of full CNC overall ribbed structure industrial design, built-in independent IMU precision control gimbal posture
·Integrated gimbal dedicated servo drive module, support pointing follow and FPV first view two working modes
·Equipped with professional-grade 640 thermal imaging and 720P visible light camera
·Can be widely used in firefighting, forest security, public security monitoring, search and rescue, environmental law enforcement and many other industries

Product Features:
1.The gimbal supports wide voltage 3-6S input.
2.Mechanical three-axis stabilized image,±0.01°stabilized image accuracy.
3.Aluminum alloy structure design,light and strong,good heat dissipation performance.
4.Highly optimized servo motor vector control algorithm.
5.Fast AV signal video output mode.
6.RAN direction controllable angle(PAN):±125°.
7.TILT direction controllable angle(TILT):-120°to +80°.

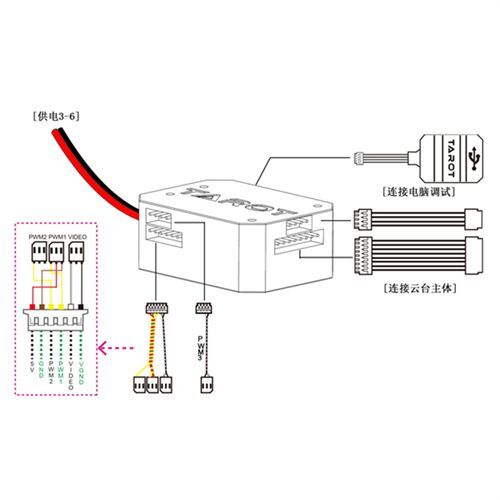

8.PWM receiver support,control gimbal Tilt/Point,two-way video switching.
9.Movement thermal imaging output resolution 640*512,visible light output 1280*720.
10.Movement debugging software(computer side)multi-mode optional.
11.Weight 287g
Note: The gimbal camera does not support internal recording

Specifications:
Functional Indicators:
– Video output: AV output, PAL format (internal recording of the system not supported)
– Support control type (gimbal): PWM

Gimbal:
– Input power supply: 3S-6S Lipo (11V-26V)
– Working current: 30mA (at 25V); 50mA (at 12V)
– Stall current: 350mA (at 25V); 700mA (at 12V)
– Temperature of working environment: -20°C to +50°C
– Weight: 278g/0.6lb

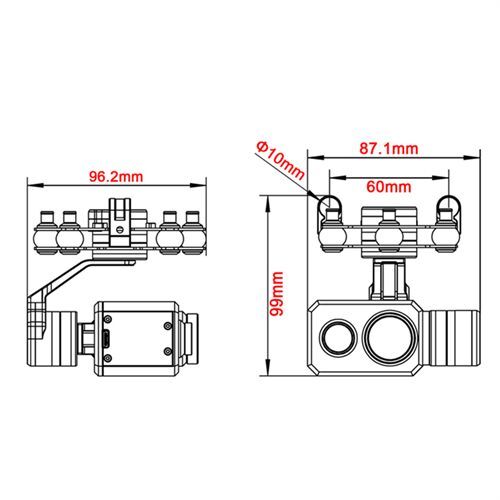

– Maximum dimensions (LxWxH): 96 x 80 x 99mm/3.8 x 3.1 x 3.9″
– Maximum speed: pitch: ± 200 degrees/second; Roll: ± 200 degrees/second; Pointing: ± 200 degrees/second
– Controllable rotation range: pitch: -120 degrees to +80 degrees; Point: -125 degrees to +125 degrees
– Attitude control accuracy: ±0.02 degrees
– Assembled camera model: 640 thermal imaging camera

Thermal Imaging Camera:
– Array size: 640*512
– Lens type: 13mm F1.2
– Focus type: No heat
– Field of view (H x V): 33° x 26°
– Instantaneous field of view: 0.95 mrad
– Minimum distance between adjacent picture elements: 12μm
– Detector frame rate: 50Hz
– Response band: 8-14μm
– Noise equivalent temperature difference: ≤50mK at 25°C, F#1.0 (≤40mK optional)
– TEC: None
– Brightness, contrast adjustment: manual mode/automatic mode/linear mode
– Polarity: Black hot/white hot
– Pseudo-color: Yes
– Cross-hairs: Show/blank/move
– Image processing: ShutterlessI, non-uniformity correction, digital filtering noise reduction and digital detail enhancement
– Image mirroring: left-right/up-down/diagonal
– Camera debugging interface: Type-c
– Camera Debugging Software: PC (for Win 10 and above, no drive)

Visible Light Camera:
– Program device: 1/3″ CMOS
– Effective pixels: 1280(H)*720(V)
– Minimum illumination: 0.05Lux/F1.2
– Horizontal definition: 1000TVL
– White balance: Automatic
– Automatic gain: Automatic
– Backlight compensation: Automatic
