Description
Features

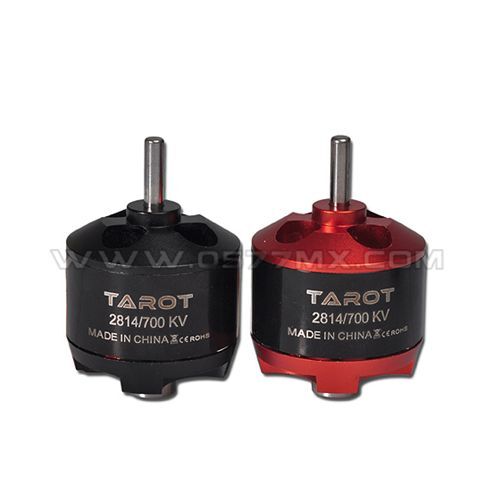

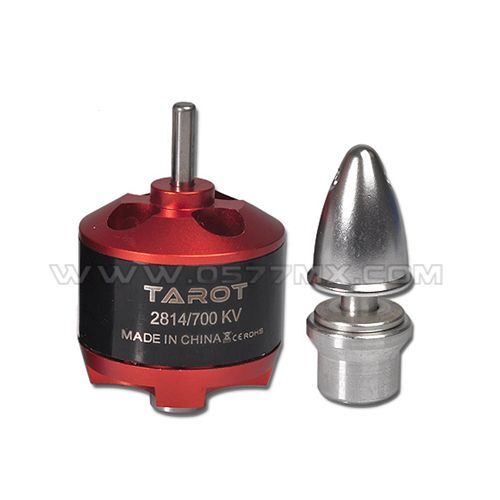

Tarot 700KV motor, a 2814/700KV efficient multi-axis brushless Tarot Motor, designed for multi-rotor aircraft such as TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D. It adopts Full CNC machined rotor high-magnetic material NdFeB refined, 12-pole stator with high strength epoxypressure reinforce the protection of high-temperature, high-speed alloy steel motor shaft. Upper and lower cover of motor using a high-speed precision bearings for large size, long life, highefficiency, low power consumption, low noise, and stability control superior characteristics.
Product Details
Tarot 700KV motor Product parameters:
Motor peripheral diameter: 35.00mm
Stator diameter: 28.0 mm
Stator end thickness: 14.0 mm
Per volt speed: 700 RPM / Volt
Motor Weight: 102 G
Gear shaft mounting diameter: Dia 4.0 mm
Motor shaft total length: 53.5 mm
No-load current: 0.8A
Installation diameter: Dia 19MM, Dia 25MM
Item Packing
2814/700KV multi-axis brushless motor x 1
3.5 banana plug x 3
The metal paddle folder x 1 group
