Description
Features
-esigned for multi-rotor aircraft
-Suitable for T960 six folding hexarotor rotor frame TL960A- T810 folding eight rotor frame TL18A00 17-18 inch frame using the rotor.
-CNC processing production- which ensure Smooth and flawless flat table and good balance.
-New design efficient turbofan cover- provide powerful cooling airflow- the rotor With high magnetic ndfeb materials refined but become- adopt high strength epoxy resin pressure strengthening protection of the stator resistance to high temperature- high magnetic
-Rotor motor with special balance correction- improve the common outer motor balance vibration problem caused by the motor shaft High alloy steel.
-Motor cover up and down with large size high speed precision bearings- with low friction torque- small power consumption- corrosion resistance Strong shock- instant high-speed radial support- etc.
-New generation of brushless motor has passed strict dynamic- Static magnetic field characteristics- strong magnetic loss of high temperature resistant- demagnetization- vibration- noise- load.
Product Details

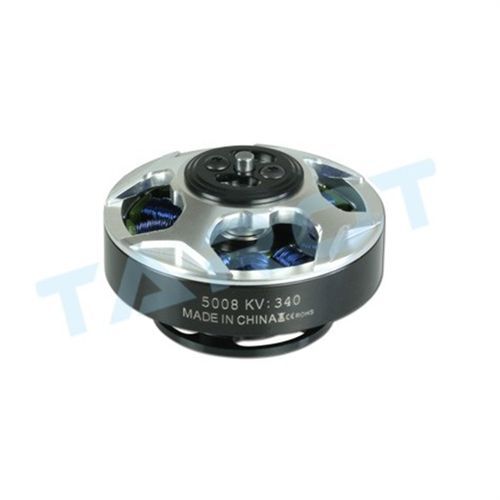

-Item Name: 5008 340KV Brushless Motor TL96020
-Suitable for rotor specifications: 17-18 inches Motor
-Max Power:700W
-Max current: 40A
-Outside diameter: 58.50 mm
-Stator diameter: 50.0 mm
-Stator side thickness: 8.0 mm
-Number of stator end: 12 n
-KV:340 RPM/v speed: the Volt
-Empty load current is 25.2 V- 25.2 Amps
-Motor weight: 168 Grams
-Gear shaft diameter: ï¿ 4.0 mm
-Motor length: 35.0 mm
-Motor axis length: 42.0 mm
-Measured open circuit voltage (V)- current (A) speed (KV)
10.0 0.6 3428
22.2 1.0 N/A
25.2 1.1 8500
Item Packing
-1 x 5008 kv340 motor
-4 x M3 8 cup head screws
-2 x M3 8 half-round head screw
-1 x Metal rotor installed plate
