Description
Features

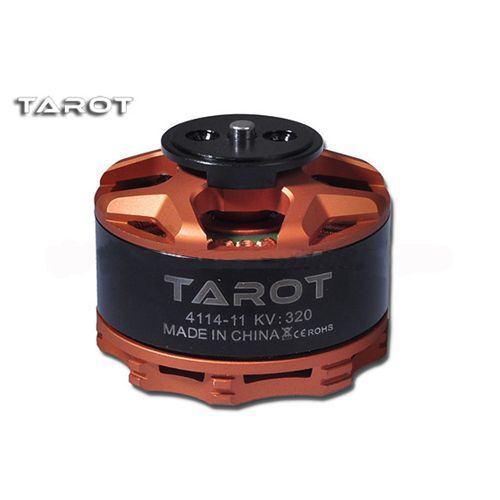

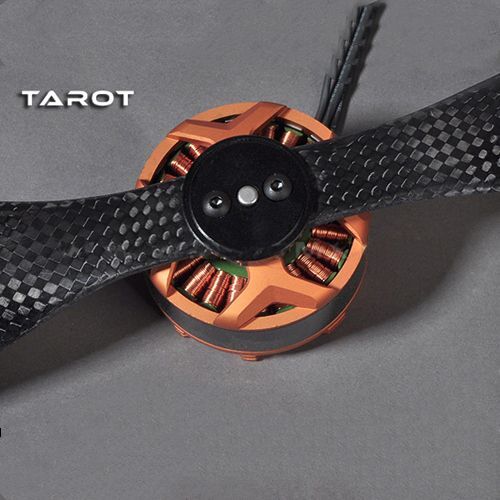

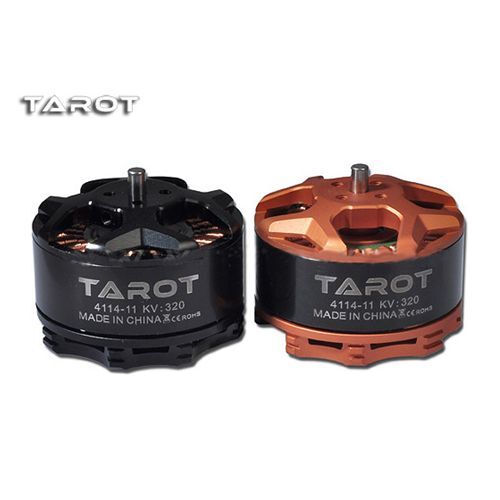

· 4114/320KV Brushless Motor is designed for multi-copter
· CNC processed, smooth surface and well-balanced
· Brand-new turbofan cover, which provide good heat dissipation effect
· Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
· Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.
Product Details
· Diameter of stator: 46.00mm
· Stator Diameter: 41.0mm
· Stator thickness: 14.0mm
· Slot number: 24N
· Pole number: 22P
· Wire diameter: 0.31mm
· Rotating speed: 320RPM/Volt 22.2V
· No-load Current: 0.5 Amps
· Motor ESR: 126mΩ
· Motor weight: 148G
· Outer diameter of gear shaft: 4.0mm
· Length of motor: 32mm
· Motor shaft diameter: 37.0mm
Item Packing
M2.5×6 stepped screw x 3
4114-11 KV320 x 1
