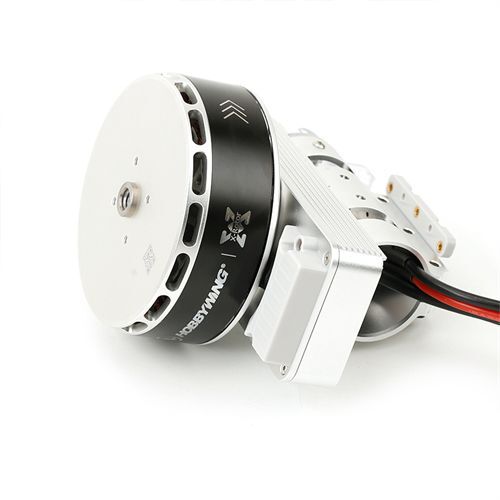

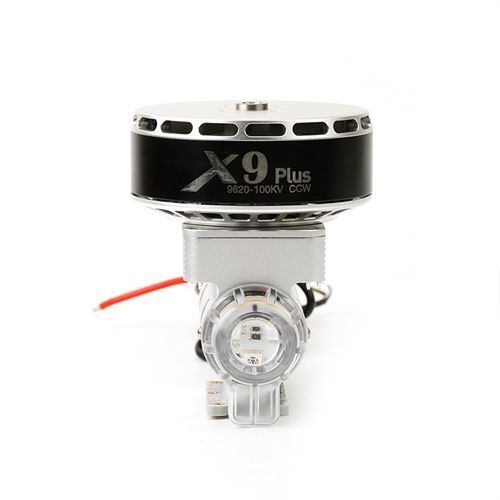

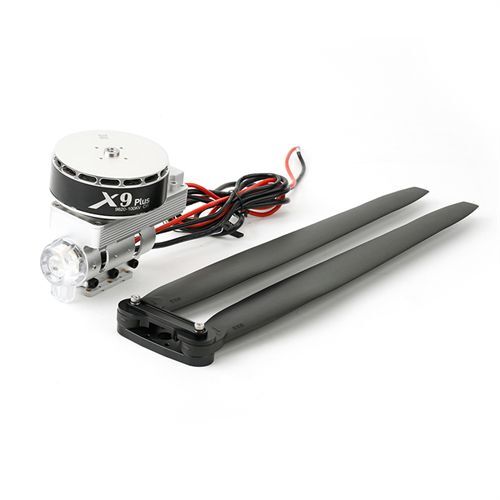

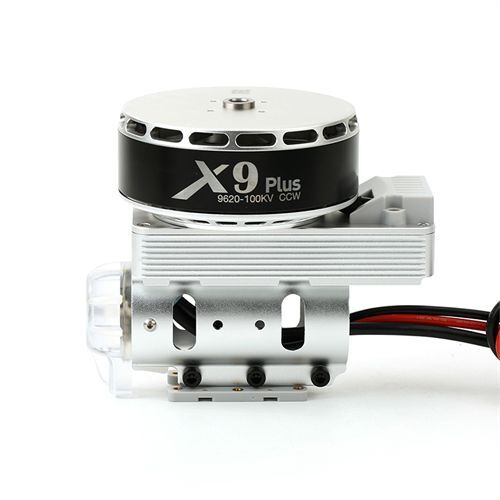

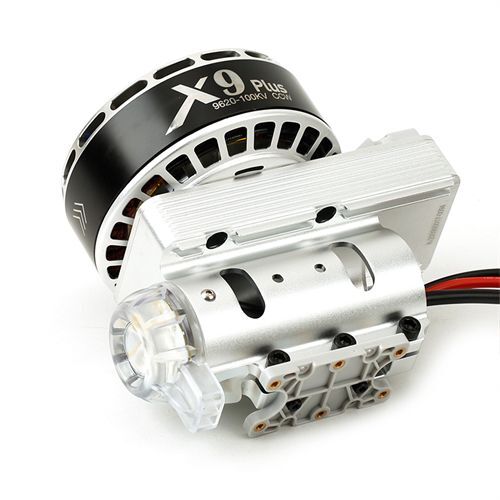

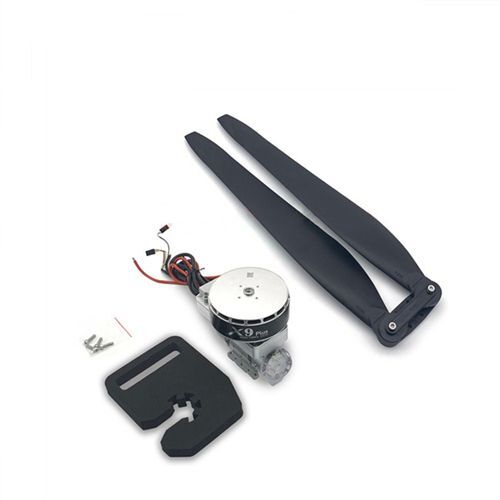

The new X9-plus power system is a double breakthrough in strength and efficiency, with a maximum load of 1 3kg / shaft and a maximum pulling force of 26. 5kg for 36-inch composite aviation folding blades.
$ 180
Specifications
Product Name: X9 Plus
Max. Thrust: 26.5kg/Axis (53.6V, Sea Level )
Recommended Takeoff Weight: 11-13kg/Axis (53.6V, Sea Level )
Recommended LiPo Battery: 14S（LiPo）
Operating Temperature: -20~50℃
Combo Weight: 1774g
Waterproof Rating: IPX7
Motor
Steering: CCW
KV Rating: 100KV
Stator Size: 96x20mm
Bearing: Bearings imported from Japan
ESC
Recommended LiPo Battery: 6-14S LiPo
PWM Input Signal Level: 3.3V/5V(Compatible)
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950us(Fixed or cannot be Programmed )
Max. Input Voltage: 60.9V
Max. Input Current (Short duration): 120A(w/ Good Heat Dissipation )
BEC: No
Propeller
Diameter×Pitch: 36×19 inch
Steering: CCW
