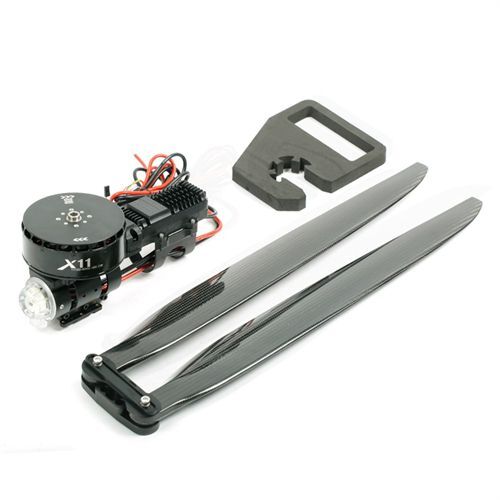

Product Name: XRotor X11-MAX
Specifications
Max. Thrust: 44kg/Axis (70V, Sea Level)
Recommended Takeoff Weight: 20-22kg/Axis (46V, Sea Level)
Recommended LiPo Battery: 18S(LiPo)
Operating Temperature: -20~50℃
Combo Weight: 2800g
Waterproof Rating: IPX6

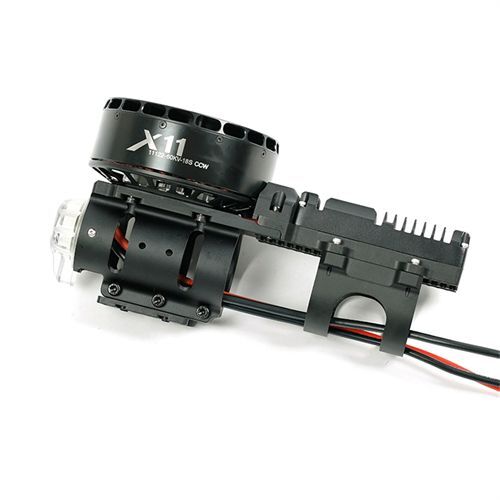

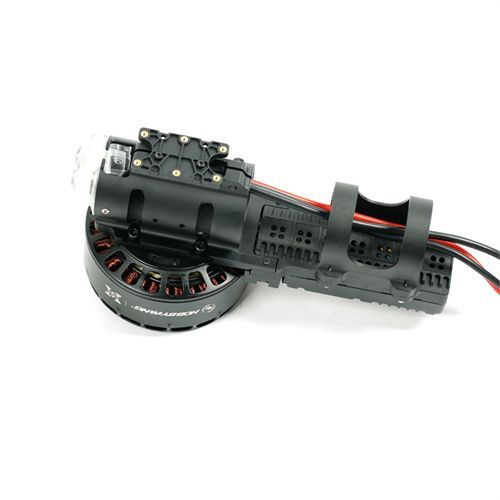

Motor
Steering: CW
KV Rating: 60 rpm/V
Stator Size: 111*22mm

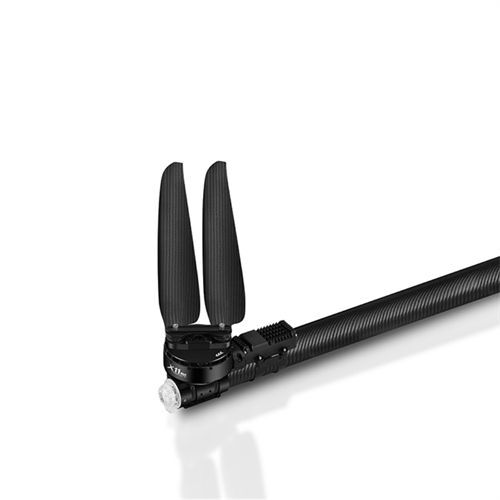

Powertrain Arm Tube Outer Diameter: 50mm
Bearing

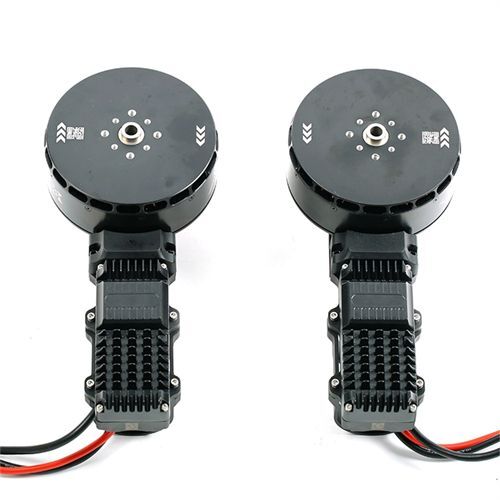

ESC
Recommended LiPo Battery: 18S(LiPo)
PWM Input Signal Level: 3.3V/5V
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950-us(Fixed or cannot be Programmed)
Max. Input Voltage: 78.3V
Max. Input Current (Short duration): 150A(w/ Good Heat Dissipation)
BEC: No

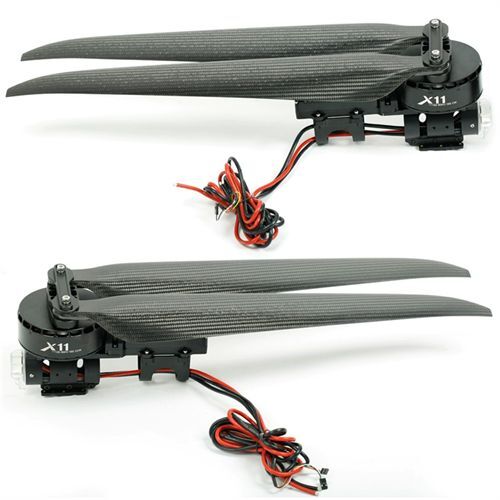

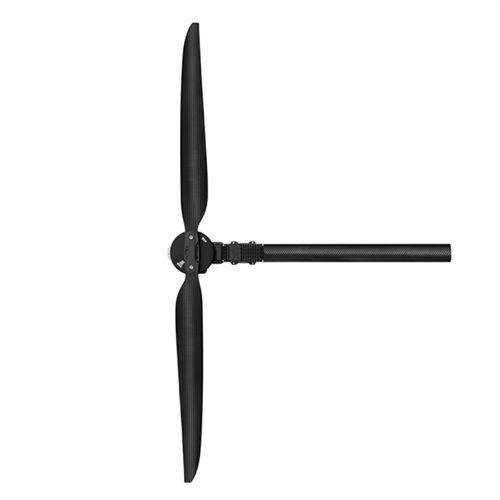

Propeller
Diameter×Pitch: 48*17.5
