The EzRun 5690SD G2 motor is known to be dynamic and dominant.The motor supports up to 8S LiPo,and they are built to meet the needs of various demands on the market.
$ 110

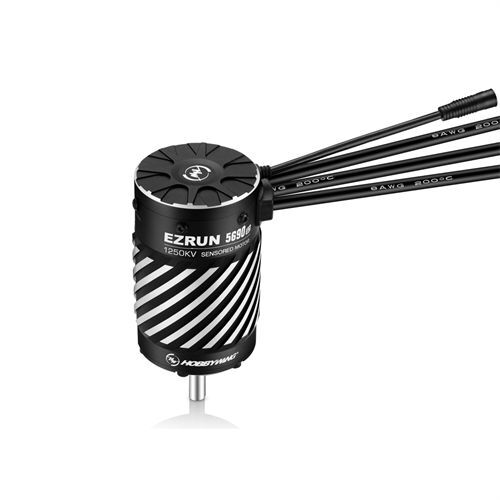

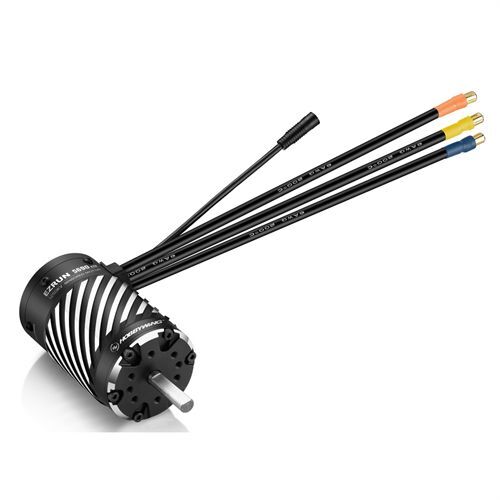

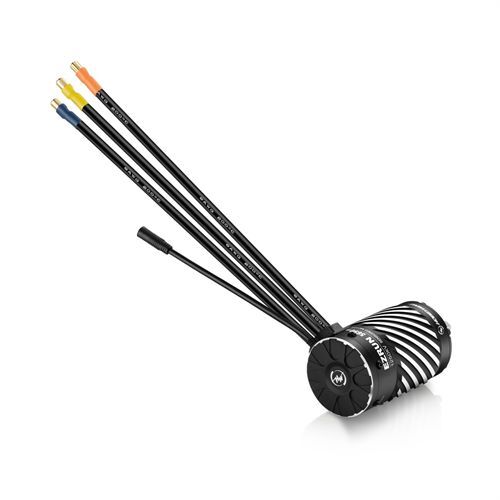

Product Name: EZRUN 5690SD G2-1250KV
Product Number: 30402350
Type
Scale: 1/5th,1/6th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole: 4
Relevant Parameters
KV Rating: 1250KV
LiPo Cells: 3-8S LIPO
No-load Current(A): 6.6A
Size & Weight
O.D.(mm): 56
Length (mm): 90.2
Shaft Diameter (mm): 8
Connectors (mm): 6.5mm (male)
Wire: Black-8AWG-250MMmm*3
Weight (g): 867g
Front Bearing: D22*D8*T7
Rear Bearing: D19*D8*T6
Other Parameters
ESC: EZRUN MAX6 G2，EZRUN MAX5 HV G2(8mm motor connectors required)
Vehicles:
1/6th Short course truck,Truck
&1/5th Light-load Truck
Examples: Losi Super Baja Rey，
ARRMA Kraton 8S，ARRMA Outcast 8S
