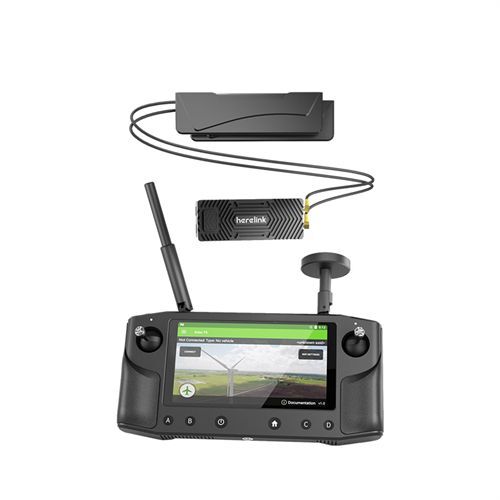

HEX Herelink V1.1 5.5in screen 2.4GHz 20KM Long Range HD

Hardware specification
– Processor：SoC – Pinecone S1，AP: 4 x large core, Cortex A53, 2.2GHz，4 x small core, Cortex A53, 1.4GHz，GPU: 4 core, Mali-T860，SDR: A7 + DSP
– Storage：Air Unit LPDDR3 1GB，Controller LPDDR3 2GB
– Air Unit/Controller：EMMC 4GB
– Transmission Range：FCC 20km CE/SRRC 12km
– Latency：Min 110ms
– Resolution：720p@30fps, 1080p@30/60fps
– Frequency Band：2.4GHz ISM
– Receive sensitivity：-99dBm@20MHz BW
– Interference recovery：< 1s

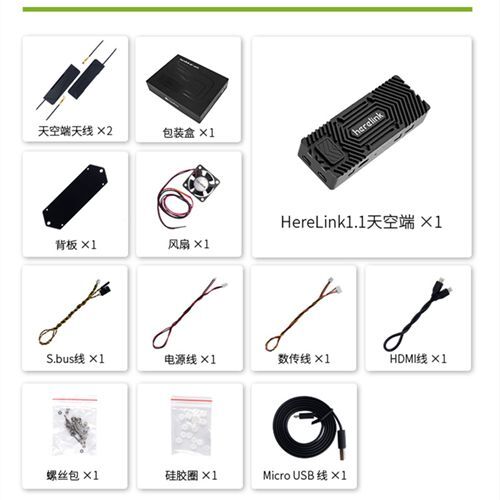

Air Unit
– Housing：Aluminum
– Weight：95g (w. antennas)
– Dimension：78.5x30x15mm (w/o antennas)
– Signal Bandwidth：20MHz/10MHz
– Power Consumption：< 4W
– HDMI 1：Micro HDMI, for video input (preferred)
– HDMI 2：Micro HDMI, for video input
– Power：Recommended supply voltage ~7V, minimum 6V, maximum，12V and avoid sharing BEC with servos
– Micro USB：For debug or upgrade, support OTG
– Pair/Reset：For pairing and reset
– LED 1, 2：To indicate pairing status and transmission status
– UART：3.3V / 5V UART
– S.bus：Two 3.3V RC output
– ANT 1, 2：MMCX, for signal transmission and communication

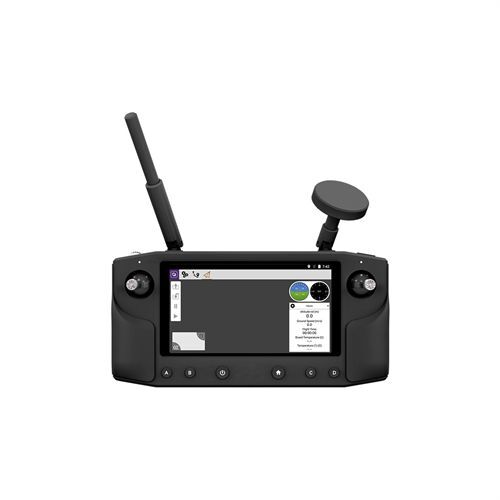

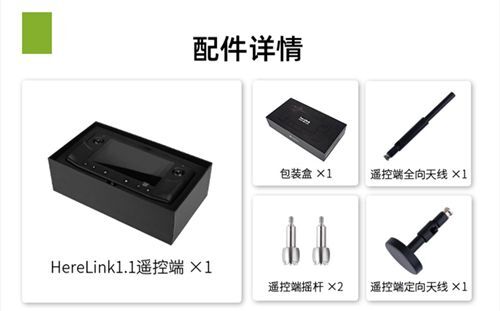

Controller
– Housing：Plastic
– Weight：516g (w. antennas)
– Dimension：217×106.5x31mm (w/o antennas, joysticks )
– Screen：5.46 inch, 1080P, 16 million colors, capacitive touch screen
– Audio：1 x built-in speaker, 2 x built-in microphone
– Remote control：2 x joystick, 1 x wheel, 6 x button (w. blacklight), 1 x upper right button
– Communication：WIFI/GPS 2.4GHz on the controller side
– LED：2 x tricolor LED (left, right)
– Interface：1 x MicroUSB, 1 x Micro SD card slot (extendable to max. 64GB)
– Antenna：1 x detachable directional (5dBi), 1 x detachable omni-directional (2dBi), built-in WIFI antenna, built-in GPS antenna, external GPS antenna interface
– Power：4950mAh built-in Lipo Battery
– Charging：Support micro USB 5V 2A charging
– Power consumption：< 4W average (With transmission on, medium screen brightness, WIFI off, GPS off)
